Drills

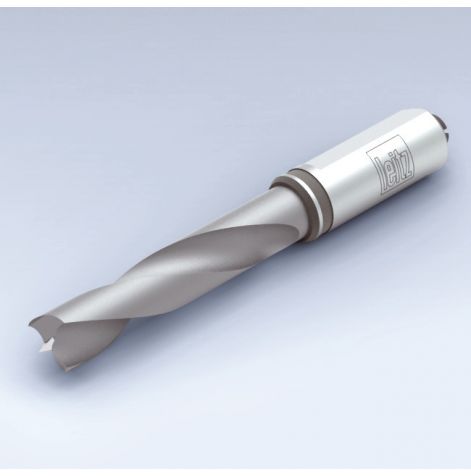

Dowel drill Excellent, shank 10 mm, GL 70 mm, Z 2 / V 2

To Purchase Selection
Tungsten carbide
Tungsten carbide
Drilling blind holes
Drilling blind holes
Manual feed
Manual feed
Solid metal tool
Solid metal tool

Information

Information
Application:

For drilling blind holes, particularly dowel holes in furniture construction. Suitable for drilling tear-free blind holes in visible areas and for machining panel materials which are covered with laminations difficult to machine (e.g. thin decorative paper).

Machine: Point-to-point drilling machines, through feed drilling machines, CNC machining centres, hinge boring machines, multi spindle units.
Workpiece material:

Softwood and hardwood, chipboard and fibre materials (MDF, HDF etc.), uncoated, plastic coated, veneered etc., laminated veneer lumber (plywood, multiplex plywood etc.).

Technical information:

Spur geometry with high shear cut. Solid tungsten carbide design with high wear resistant tungsten carbide grade. High stability and long performance time. Polished gullet for minimum friction and feed forces. Very large resharpening area.

Tool Selection
Id D
mm
GL
mm
L
mm
NL
mm
S
mm
DRI
33550 Dowel drill
HW/D3/NL25/S10x25/GL68.5/LL
D: 3 mm
GL: 70 mm
L: 68.5 mm
NL: 25 mm
S: 10x25 mm
DRI: LH
In Stock
*stock levels may be subject to change
33551 Dowel drill
HW/D3/NL25/S10x25/GL68.5/RL
D: 3 mm
GL: 70 mm
L: 68.5 mm
NL: 25 mm
S: 10x25 mm
DRI: RH
In Stock
*stock levels may be subject to change
33542 Dowel drill
HW/D4/NL35/S10x27/Z2
D: 4 mm
GL: 70 mm
L: 68.5 mm
NL: 35 mm
S: 10x25 mm
DRI: LH
Out of stock
33543 Dowel drill
HW/D4/NL35/S10x27/Z2
D: 4 mm
GL: 70 mm
L: 68.5 mm
NL: 35 mm
S: 10x25 mm
DRI: RH
In Stock
*stock levels may be subject to change
33496 Dowel drill
HW/D5/NL35/S10x27/GL70/LL
D: 5 mm
GL: 70 mm
L: 68.5 mm
NL: 35 mm
S: 10x25 mm
DRI: LH
In Stock
*stock levels may be subject to change
33497 Dowel drill
HW/D5/NL35/S10x27/GL70/RL
D: 5 mm
GL: 70 mm
L: 68.5 mm
NL: 35 mm
S: 10x25 mm
DRI: RH
In Stock
*stock levels may be subject to change
33498 Dowel drill
HW/D6/NL35/S10x27/GL70/LL
D: 6 mm
GL: 70 mm
L: 68.5 mm
NL: 35 mm
S: 10x25 mm
DRI: LH
In Stock
*stock levels may be subject to change
33499 Dowel drill
HW/D6/NL35/S10x27/GL70/RL
D: 6 mm
GL: 70 mm
L: 68.5 mm
NL: 35 mm
S: 10x25 mm
DRI: RH
In Stock
*stock levels may be subject to change
33548 Dowel drill
HW/D7/NL35/S10x27/GL70/LL
D: 7 mm
GL: 70 mm
L: 68.5 mm
NL: 35 mm
S: 10x25 mm
DRI: LH
In Stock
*stock levels may be subject to change
33549 Dowel drill
HW/D7/NL35/S10x27/GL70/RL
D: 7 mm
GL: 70 mm
L: 68.5 mm
NL: 35 mm
S: 10x25 mm
DRI: RH
In Stock
*stock levels may be subject to change
33500 Dowel drill
HW/D8/NL35/S10x27/GL70/LL
D: 8 mm
GL: 70 mm
L: 68.5 mm
NL: 35 mm
S: 10x25 mm
DRI: LH
In Stock
*stock levels may be subject to change
33501 Dowel drill
HW/D8/NL35/S10x27/GL70/RL
D: 8 mm
GL: 70 mm
L: 68.5 mm
NL: 35 mm
S: 10x25 mm
DRI: RH
In Stock
*stock levels may be subject to change
33540 Dowel drill
HW/D10/NL35/S10x27/Z2
D: 10 mm
GL: 70 mm
L: 68 mm
NL: 35 mm
S: 10x25 mm
DRI: LH
In Stock
*stock levels may be subject to change
33541 Dowel drill
HW/D10/NL35/S10x27/Z2
D: 10 mm
GL: 70 mm
L: 68 mm
NL: 35 mm
S: 10x25 mm
DRI: RH
In Stock
*stock levels may be subject to change
  • 33550 Dowel drill
    HW/D3/NL25/S10x25/GL68.5/LL
    D: 3 mm
    GL: 70 mm
    L: 68.5 mm
    NL: 25 mm
    S: 10x25 mm
    DRI: LH
    In Stock
    *stock levels may be subject to change
  • 33551 Dowel drill
    HW/D3/NL25/S10x25/GL68.5/RL
    D: 3 mm
    GL: 70 mm
    L: 68.5 mm
    NL: 25 mm
    S: 10x25 mm
    DRI: RH
    In Stock
    *stock levels may be subject to change
  • 33542 Dowel drill
    HW/D4/NL35/S10x27/Z2
    D: 4 mm
    GL: 70 mm
    L: 68.5 mm
    NL: 35 mm
    S: 10x25 mm
    DRI: LH
    Out of stock
  • 33543 Dowel drill
    HW/D4/NL35/S10x27/Z2
    D: 4 mm
    GL: 70 mm
    L: 68.5 mm
    NL: 35 mm
    S: 10x25 mm
    DRI: RH
    In Stock
    *stock levels may be subject to change
  • 33496 Dowel drill
    HW/D5/NL35/S10x27/GL70/LL
    D: 5 mm
    GL: 70 mm
    L: 68.5 mm
    NL: 35 mm
    S: 10x25 mm
    DRI: LH
    In Stock
    *stock levels may be subject to change
  • 33497 Dowel drill
    HW/D5/NL35/S10x27/GL70/RL
    D: 5 mm
    GL: 70 mm
    L: 68.5 mm
    NL: 35 mm
    S: 10x25 mm
    DRI: RH
    In Stock
    *stock levels may be subject to change
  • 33498 Dowel drill
    HW/D6/NL35/S10x27/GL70/LL
    D: 6 mm
    GL: 70 mm
    L: 68.5 mm
    NL: 35 mm
    S: 10x25 mm
    DRI: LH
    In Stock
    *stock levels may be subject to change
  • 33499 Dowel drill
    HW/D6/NL35/S10x27/GL70/RL
    D: 6 mm
    GL: 70 mm
    L: 68.5 mm
    NL: 35 mm
    S: 10x25 mm
    DRI: RH
    In Stock
    *stock levels may be subject to change
  • 33548 Dowel drill
    HW/D7/NL35/S10x27/GL70/LL
    D: 7 mm
    GL: 70 mm
    L: 68.5 mm
    NL: 35 mm
    S: 10x25 mm
    DRI: LH
    In Stock
    *stock levels may be subject to change
  • 33549 Dowel drill
    HW/D7/NL35/S10x27/GL70/RL
    D: 7 mm
    GL: 70 mm
    L: 68.5 mm
    NL: 35 mm
    S: 10x25 mm
    DRI: RH
    In Stock
    *stock levels may be subject to change
  • 33500 Dowel drill
    HW/D8/NL35/S10x27/GL70/LL
    D: 8 mm
    GL: 70 mm
    L: 68.5 mm
    NL: 35 mm
    S: 10x25 mm
    DRI: LH
    In Stock
    *stock levels may be subject to change
  • 33501 Dowel drill
    HW/D8/NL35/S10x27/GL70/RL
    D: 8 mm
    GL: 70 mm
    L: 68.5 mm
    NL: 35 mm
    S: 10x25 mm
    DRI: RH
    In Stock
    *stock levels may be subject to change
  • 33540 Dowel drill
    HW/D10/NL35/S10x27/Z2
    D: 10 mm
    GL: 70 mm
    L: 68 mm
    NL: 35 mm
    S: 10x25 mm
    DRI: LH
    In Stock
    *stock levels may be subject to change
  • 33541 Dowel drill
    HW/D10/NL35/S10x27/Z2
    D: 10 mm
    GL: 70 mm
    L: 68 mm
    NL: 35 mm
    S: 10x25 mm
    DRI: RH
    In Stock
    *stock levels may be subject to change

RPM: n = 3000 - 12000 min-1
