Drills

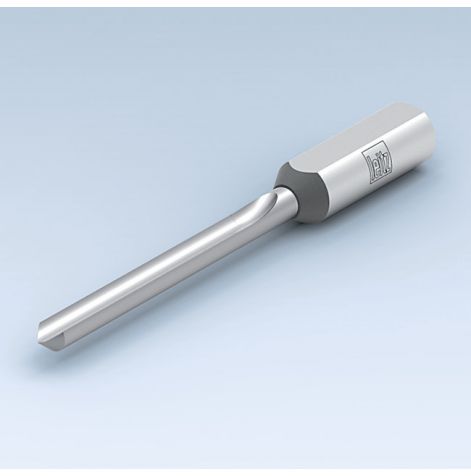

Boring pins HW-solid, shank 10 mm, GL 57.5 / GL 70 mm, Z 1/1
Sign up today!
Create an account to gain full site access – visible pricing, save your favorite tools and acess to exclusive offers
Search
Contact Us
Enquiries, Product Sales & Customer Service
With a national network of saw and tool sharpening centres around the UK, Leitz Tooling UK offers local customer support ensuring their saws and tools are sharpened and serviced to original manufacturer standards so maintaining quality and efficiency. To learn more of how we can provide your business with cost effective tooling solutions, please contact Leitz UK using the contact us button.
Contact us
English
Region and language
Great Britain
English
Tungsten carbide
Drilling blind holes
Manual feed
Solid metal tool
Information
| Application: | For drilling blind holes, particularly dowel holes on the side of panel furniture parts. |
|---|---|
| Machine: | Point-to-point drilling machines, through feed drilling machines, CNC machining centres, hinge boring machines, multi spindle units. |
| Workpiece material: | Softwood and hardwood, chipboard and fibre materials (MDF, HDF etc.), uncoated, plastic coated, veneered etc., laminated veneer lumber (plywood, multiplex plywood etc.). |
| Technical information: | Solid tungsten carbide design for high performance time. Large resharpening area. Tool suitable for RH and LH rotation. Drill design D = 3 mm particularly suitable for pre-drilling screw holes in plastic coated and veneered furniture parts. Infeed depth in hardwood and glulam maximum 2 x D. |
Tool Selection
| Id |
D mm |
GL mm |
NL mm |
S mm |
DRI |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
230200
Boring pins
HW/D3/NL25/S10x27/Z1/1 |
D:
3
mm
|
GL:
57.5
mm
|
NL:
25
mm
|
S:
10x27
mm
|
DRI:
LH, RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
230201
Boring pins
HW/D3/NL35/S10x27/Z1/1 |
D:
3
mm
|
GL:
70
mm
|
NL:
35
mm
|
S:
10x27
mm
|
DRI:
LH, RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
230208
Boring pins
HW/D5/NL35/S10x30/GL70 |
D:
5
mm
|
GL:
70
mm
|
NL:
35
mm
|
S:
10x27
mm
|
DRI:
LH, RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
230209
Boring pins
HW/D6/NL35/S10x30/GL70 |
D:
6
mm
|
GL:
70
mm
|
NL:
35
mm
|
S:
10x27
mm
|
DRI:
LH, RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
230210
Boring pins
HW/D8/NL35/S10x30/GL70 |
D:
8
mm
|
GL:
70
mm
|
NL:
35
mm
|
S:
10x27
mm
|
DRI:
LH, RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
230212
Boring pins
HW/D6/NL25/S10x30/GL57 |
D:
6
mm
|
GL:
57.5
mm
|
NL:
25
mm
|
S:
10x27
mm
|
DRI:
LH, RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
230200 Boring pins
HW/D3/NL25/S10x27/Z1/1D: 3 mmGL: 57.5 mmNL: 25 mmS: 10x27 mmDRI: LH, RHIn Stock*stock levels may be subject to change -
230201 Boring pins
HW/D3/NL35/S10x27/Z1/1D: 3 mmGL: 70 mmNL: 35 mmS: 10x27 mmDRI: LH, RHIn Stock*stock levels may be subject to change -
230208 Boring pins
HW/D5/NL35/S10x30/GL70D: 5 mmGL: 70 mmNL: 35 mmS: 10x27 mmDRI: LH, RHIn Stock*stock levels may be subject to change -
230209 Boring pins
HW/D6/NL35/S10x30/GL70D: 6 mmGL: 70 mmNL: 35 mmS: 10x27 mmDRI: LH, RHIn Stock*stock levels may be subject to change -
230210 Boring pins
HW/D8/NL35/S10x30/GL70D: 8 mmGL: 70 mmNL: 35 mmS: 10x27 mmDRI: LH, RHIn Stock*stock levels may be subject to change -
230212 Boring pins
HW/D6/NL25/S10x30/GL57D: 6 mmGL: 57.5 mmNL: 25 mmS: 10x27 mmDRI: LH, RHIn Stock*stock levels may be subject to change
RPM: n = 3000 - 9000 min-1
Note:
When using the bore pins in hardwood and glulam, the potential bore depth is restricted. Interim chip removal (return stroke) then is obligatory.
Boring pins require more power compared to dowel drills. The maximum number of boring pins, used in one drilling unit, depends on the power of the machine.
Explanation of abbreviations
D
Diameter
GL
Total length
NL
Cutting length
S
Shank dimension
DRI
Rotation
Spare parts:
| Id | BEZ | ABM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9157
Length adjustment screw Torx® 20
M5x17 |
BEZ: Length adjustment screw Torx® 20 | ABM: M5x17 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
9157 Length adjustment screw Torx® 20
M5x17BEZ: Length adjustment screw Torx® 20ABM: M5x17In Stock*stock levels may be subject to change
