Tungsten carbide
Grooving, sizing
Mechanical feed
Solid metal tool
Information
| Application: | Router cutter for sizing, grooving and finish cutting. For high demands on finish quality. |
|---|---|
| Machine: | Stationary routers with/without CNC control, machining centres, milling machines with spindles to mount shank tools. |
| Workpiece material: | Softwood and hardwood, chipboard and fibre materials (MDF, HDF etc.), uncoated, plastic coated, veneered etc., laminated veneer lumber (plywood, multiplex plywood etc.), duromers, plastomers, solid surface material (Corian, Varicor etc.), decorative laminates (HPL-compact laminate, Trespa etc.), NF-metals (aluminium, copper etc.). |
| Technical information: | Large twist angle for high shear cut. Check twist direction for good top layer cut quality. Maximum cutting depth 1.0 - 1.5 x D. Short design for increased stability and reduced vibration. Long design for increased cutting depth (recommended in several steps). |
Tool Selection
| Id |
D mm |
GL mm |
NL mm |
S mm |
Z |
Twist |
DRI |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
42739

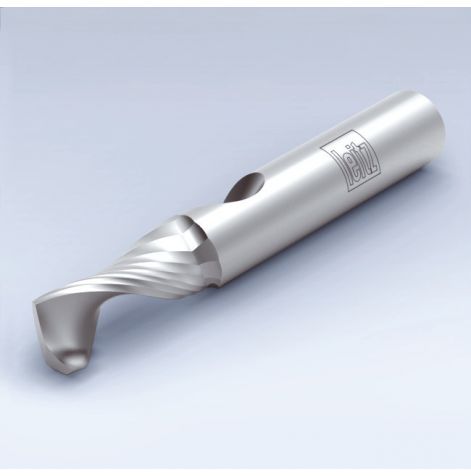

Spiral finishing router cutter
HW/D4/NL12/S6x40/GL60/Z1/RH |
D:
4
mm
|
GL:
60
mm
|
NL:
12
mm
|
S:
6x40
mm
|
Z:
1
|
Twist:
RD
|
DRI:
RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
42740
Spiral finishing router cutter
HW/D4/NL12/S6x40/GL60/Z1/RH |
D:
4
mm
|
GL:
60
mm
|
NL:
12
mm
|
S:
6x40
mm
|
Z:
1
|
Twist:
LD
|
DRI:
RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
42741
Spiral finishing router cutter
HW/D5/NL18/S6x40/GL80/Z1/RH |
D:
5
mm
|
GL:
80
mm
|
NL:
18
mm
|
S:
6x40
mm
|
Z:
1
|
Twist:
RD
|
DRI:
RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
42742
Spiral finishing router cutter
HW/D5/NL18/S6x40/GL80/Z1/RH |
D:
5
mm
|
GL:
80
mm
|
NL:
18
mm
|
S:
6x40
mm
|
Z:
1
|
Twist:
LD
|
DRI:
RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
42743
Spiral finishing router cutter
HW/D6/NL22/S6x40/GL80/Z1/RH |
D:
6
mm
|
GL:
80
mm
|
NL:
22
mm
|
S:
6x40
mm
|
Z:
1
|
Twist:
RD
|
DRI:
RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
42744
Spiral finishing router cutter
HW/D6/NL22/S6x40/GL80/Z1/RH |
D:
6
mm
|
GL:
80
mm
|
NL:
22
mm
|
S:
6x40
mm
|
Z:
1
|
Twist:
LD
|
DRI:
RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
42745
Spiral finishing router cutter
HW/D8/NL25/S8x40/GL80/Z1/RH |
D:
8
mm
|
GL:
80
mm
|
NL:
25
mm
|
S:
8x40
mm
|
Z:
1
|
Twist:
RD
|
DRI:
RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
42746
Spiral finishing router cutter
HW/D8/NL25/S8x40/GL80/Z1/RH |
D:
8
mm
|
GL:
80
mm
|
NL:
25
mm
|
S:
8x40
mm
|
Z:
1
|
Twist:
LD
|
DRI:
RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
42747
Spiral finishing router cutter
HW/D10/NL32/S10x40/GL90/Z1/RH |
D:
10
mm
|
GL:
90
mm
|
NL:
32
mm
|
S:
10x40
mm
|
Z:
1
|
Twist:
RD
|
DRI:
RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
42748
Spiral finishing router cutter
HW/D10/NL32/S10x40/GL90/Z1/RH |
D:
10
mm
|
GL:
90
mm
|
NL:
32
mm
|
S:
10x40
mm
|
Z:
1
|
Twist:
LD
|
DRI:
RH
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
In Stock
*stock levels may be subject to change
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
42739 Spiral finishing router cutter
HW/D4/NL12/S6x40/GL60/Z1/RHD: 4 mmGL: 60 mmNL: 12 mmS: 6x40 mmZ: 1Twist: RDDRI: RHIn Stock*stock levels may be subject to change -
42740 Spiral finishing router cutter
HW/D4/NL12/S6x40/GL60/Z1/RHD: 4 mmGL: 60 mmNL: 12 mmS: 6x40 mmZ: 1Twist: LDDRI: RHIn Stock*stock levels may be subject to change -
42741 Spiral finishing router cutter
HW/D5/NL18/S6x40/GL80/Z1/RHD: 5 mmGL: 80 mmNL: 18 mmS: 6x40 mmZ: 1Twist: RDDRI: RHIn Stock*stock levels may be subject to change -
42742 Spiral finishing router cutter
HW/D5/NL18/S6x40/GL80/Z1/RHD: 5 mmGL: 80 mmNL: 18 mmS: 6x40 mmZ: 1Twist: LDDRI: RHIn Stock*stock levels may be subject to change -
42743 Spiral finishing router cutter
HW/D6/NL22/S6x40/GL80/Z1/RHD: 6 mmGL: 80 mmNL: 22 mmS: 6x40 mmZ: 1Twist: RDDRI: RHIn Stock*stock levels may be subject to change -
42744 Spiral finishing router cutter
HW/D6/NL22/S6x40/GL80/Z1/RHD: 6 mmGL: 80 mmNL: 22 mmS: 6x40 mmZ: 1Twist: LDDRI: RHIn Stock*stock levels may be subject to change -
42745 Spiral finishing router cutter
HW/D8/NL25/S8x40/GL80/Z1/RHD: 8 mmGL: 80 mmNL: 25 mmS: 8x40 mmZ: 1Twist: RDDRI: RHIn Stock*stock levels may be subject to change -
42746 Spiral finishing router cutter
HW/D8/NL25/S8x40/GL80/Z1/RHD: 8 mmGL: 80 mmNL: 25 mmS: 8x40 mmZ: 1Twist: LDDRI: RHIn Stock*stock levels may be subject to change -
42747 Spiral finishing router cutter
HW/D10/NL32/S10x40/GL90/Z1/RHD: 10 mmGL: 90 mmNL: 32 mmS: 10x40 mmZ: 1Twist: RDDRI: RHIn Stock*stock levels may be subject to change -
42748 Spiral finishing router cutter
HW/D10/NL32/S10x40/GL90/Z1/RHD: 10 mmGL: 90 mmNL: 32 mmS: 10x40 mmZ: 1Twist: LDDRI: RHIn Stock*stock levels may be subject to change
RPM:
Wood/wood derived material: n = 16000 - 24000 min-1
Plastics: n = 12000 - 18000 min-1
Explanation of abbreviations
D
Diameter
GL
Total length
NL
Cutting length
S
Shank dimension
Z
Number of teeth
Twist
Twist direction
DRI
Rotation
